DIY Horizontal 16inch Smoker
In Grilling

DIY Horizontal 16inch Smoker

Hello guys greetings from Germany,

I am able to weld my first Smoker Setup as a apprenticeship project. Now i found this website (Feldoncalculator) on YouTube and filled in my parameters. (16 inch) 406,4mm pipe which is 800mm long and the same pipe for the fireplace which is 300mm long.

Can anyone tell me if i put all the data in right?

http://feldoncentral.com/bbqcalculator.html?cc=16,31.5,0,0,0,0,6330.24,2110.08&fb=0,0,0,16,11,2211.62,2110.08,104.8&ch=3.5,110.58,11.50&fi=0,0,2.9,6.63,1.00&fc=4.75,6.71,17.69

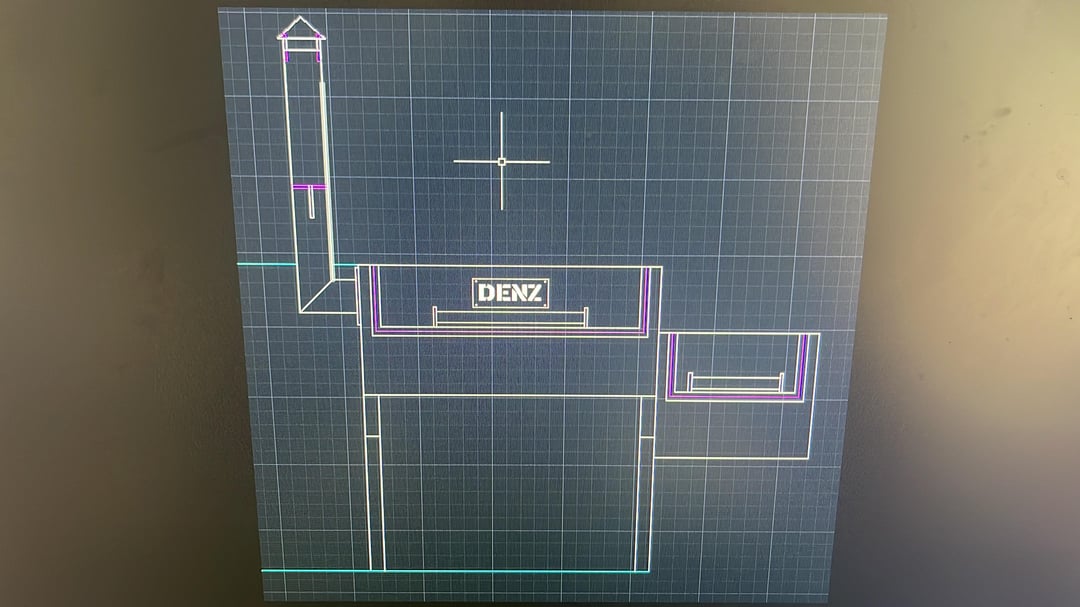

I will post the process of the smoker until the project is finished. The puctures are my first vision of the smoker, but i have to do it from scratch bcs of the wrong measurements.

by Pilz_Eskalation

2 Comments

  1. cheeker_sutherland

    Looks cool but you don’t need established and since. Pick one and go with it.

  2. TeamThrash

    I’ve built several smokers following that page and each has worked very well. Smokers are fun builds and give a lot of good experience
